View Non-Metallic Armoured Cable

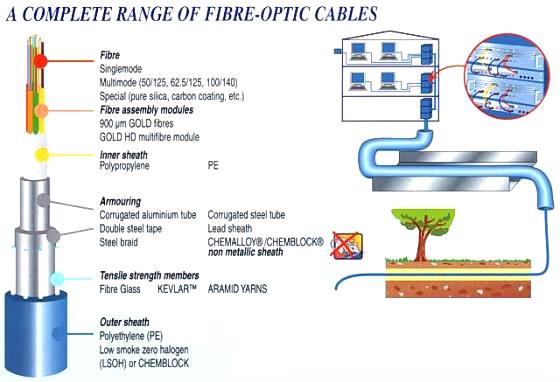

OKI-FORT offers a complete range of fiber optic cables, from indoor and duct grade to outdoor.
Key Features
Moisture Protection without Jelly Fill-In Compound
- UV cured hermetic coating HF™
- Water-proof 900µm or 2.8 mm sheath
- Polypropylene inner sheath
- Possibility of incorporating a water-absorbent tape for highly exposed cables
Cable Armouring
For outdoor cables, OKI-FORT offers various options for metallic and non-metallic armoured cables:
- Corrugated steel tube, corrugated aluminum tube, double steel tape and lead sheath
- Unique non-metallic armoured cable (CHEMALLOY® + fiber glass) offers added protection from lightning strike, cost reduction and easier installation because no grounding is required.
Peripheral Strength Members
All OKI-FORT outdoor cables are fitted with fiber glass or Aramid strength members between the inner sheath and the cable's outer jacket.
- No need to free the central strength members to pull the cable
- Very easy cable termination
- Cable jacket with high mechanical strength
- Easy installation by pulling the outer jacket
Crushing Protection
All OKI-FORT outdoor cables have at least two polymer sheaths. The polypropylene inner sheath provides additional crushing strength.
Loose Tube Construction
- The fibers are independent of the cable jacket
- Fibers are assembled in cable with excess length so the cable can withstand sheath elongation without stress on the fiber
- No risk of damaging fibers during cable installation
- Easy to prepare and strip
Outer Sheath
Indoor cables: Low Smoke Zero Halogen Jacket
- BS 6425, VDE 0207, NFC 32-062
- Fire-resistant (IEC 332 Part 1, NFC 32-070)
- PVC sheath — does not propagate flame (UL 1666)
Outdoor cables: UV stabilized polyethylene jacket
- Hydrocarbon resistant PVC jacket
